Refrigerated Truck Body with Hydraulic Tailgate & Ramp
Product Description

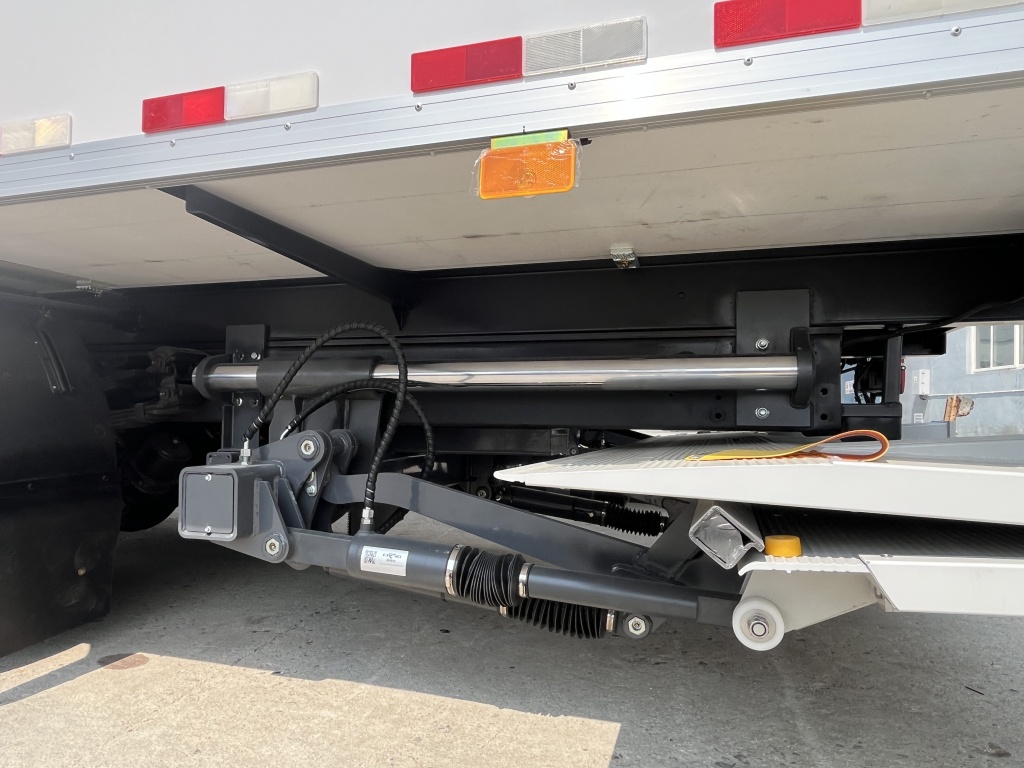

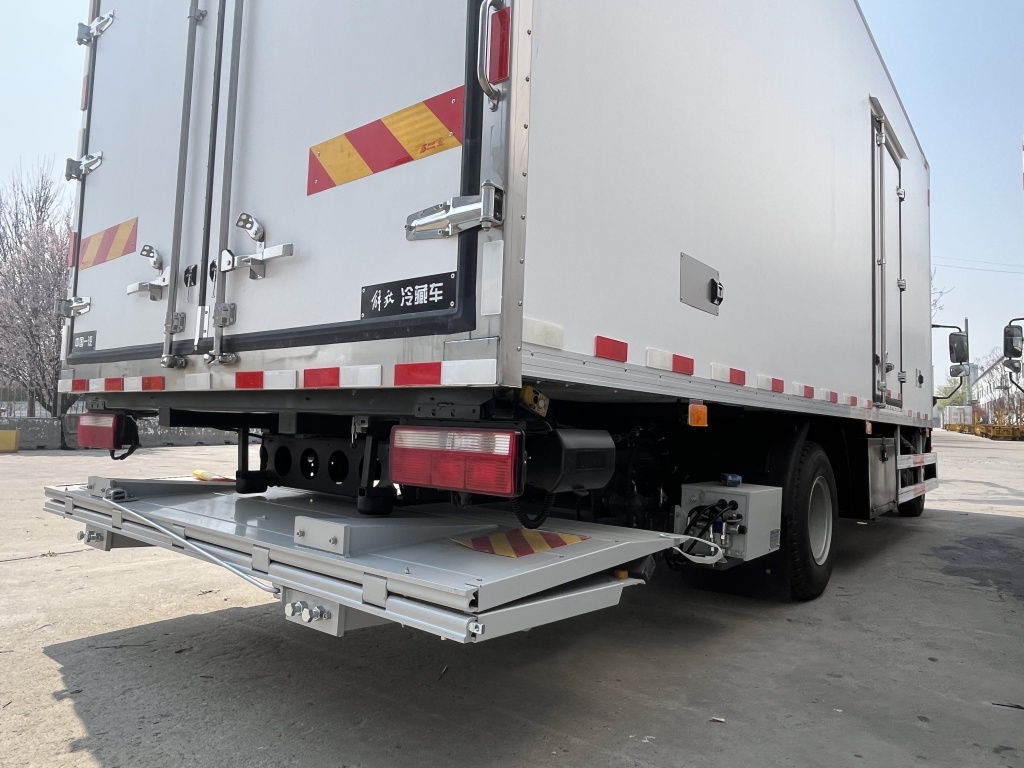

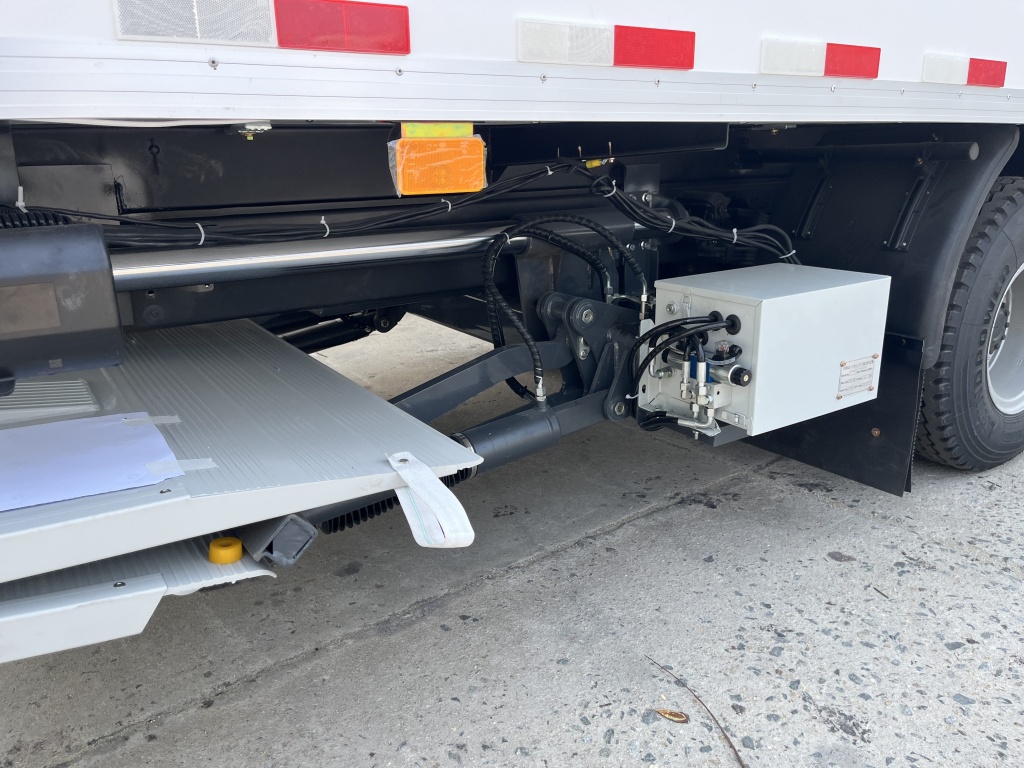

The Refrigerated Truck Body with Hydraulic Tailgate & Ramp integrates a factory-fitted hydraulic lift tailgate as a standard feature, providing self-contained loading and unloading capability without reliance on dock infrastructure. This body is designed for distribution operations where deliveries are made to locations without loading docks — including restaurants, hotels, schools, hospitals, and retail sites. The hydraulic tailgate system (compatible with industry-standard models such as Zally or equivalent) enables ground-level pallet loading and unloading with controlled vertical movement.
Available in both PU integral foam and FRP sandwich panel construction, the body is reinforced at the rear frame to accommodate the tailgate mounting structure and hydraulic mechanisms. The tailgate is available in rated lifting capacities from 1,000 kg to 2,000 kg, with platform sizes sized to match standard euro-pallet dimensions. An optional fold-out ramp extension can be integrated for roll-cage or hand-truck access. The body retains full thermal performance with reinforced rear door seals and an insulated rear frame that minimizes cold loss at the loading interface.
Why Choose This Product?
- Industry-leading quality and reliability
- Energy-efficient design for cost savings
- Comprehensive warranty and support
- Easy maintenance and serviceability
Request Information
Interested in this product? Fill out the form below to get detailed information, pricing, and technical documentation.
Quick Specs
Categories
Related Products
Custom Insulated Reefer Box for Fruit, Vegetable & Vaccine Cold Chain Transport
Custom refrigerated compartment is specially built for cold chain delivery of fruits, vegetables and medical...
- Dual-temperature design satisfies both fresh produce and vaccine cold storage standards
- Excellent thermal insulation cuts energy consumption of refrigeration unit
- Fully customizable body size & internal layout
7.8m Multi-Temperature Refrigerated Truck Body
The 7.8m Multi-Temperature Refrigerated Truck Body addresses the growing demand for split-load cold chain transport,...
- Dual-Zone Independent Temperature Control — A sealed, insulated partition divides the body into two compartments, each with separate evaporators and thermostatic controls for independent temperature management.
- Movable Partition System — The partition glides on recessed rail tracks embedded in the sidewalls and can be repositioned in minutes to flexibly allocate cargo space by temperature requirement.
- Dual Construction Options — Available in lightweight FRP sandwich panel or high-insulation PU integral foam construction, allowing operators to optimize between cost, weight, and thermal performance.
Stainless Steel Lined Refrigerated Truck Body (Food Grade)
The Stainless Steel Lined Refrigerated Truck Body (Food Grade) is purpose-built for the most demanding...
- 304 Stainless Steel Interior — Food-grade stainless steel liner (1.2–1.5 mm thickness) resists corrosion from blood, brine, acids, and cleaning chemicals.
- Seamless Welded Construction — Interior seams are continuously welded and ground smooth, eliminating crevices that could harbor bacteria or trap residue.
- Coved Corner Design — All interior corners are radiused (coved) to facilitate draining and prevent accumulation of debris and moisture.
