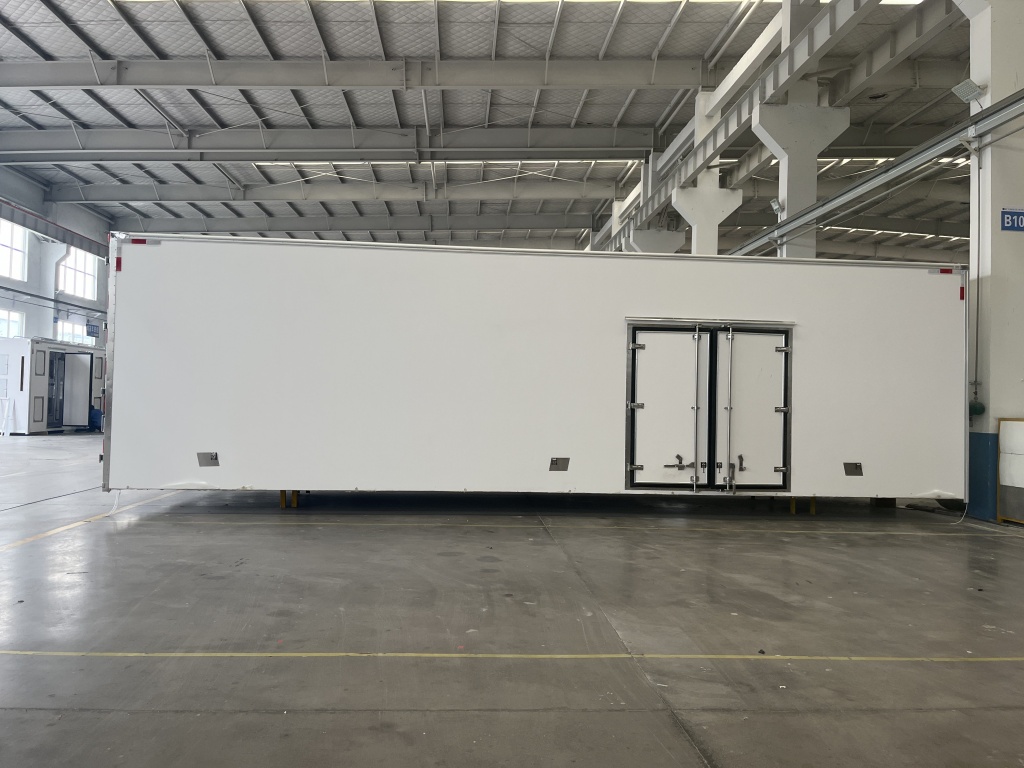

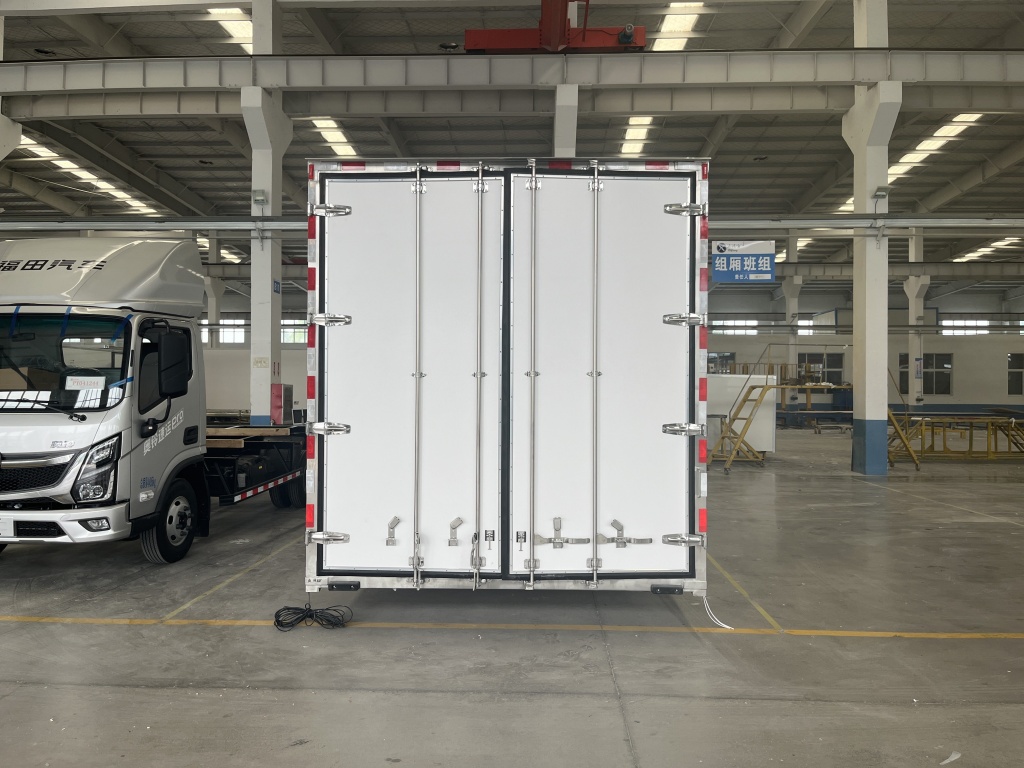

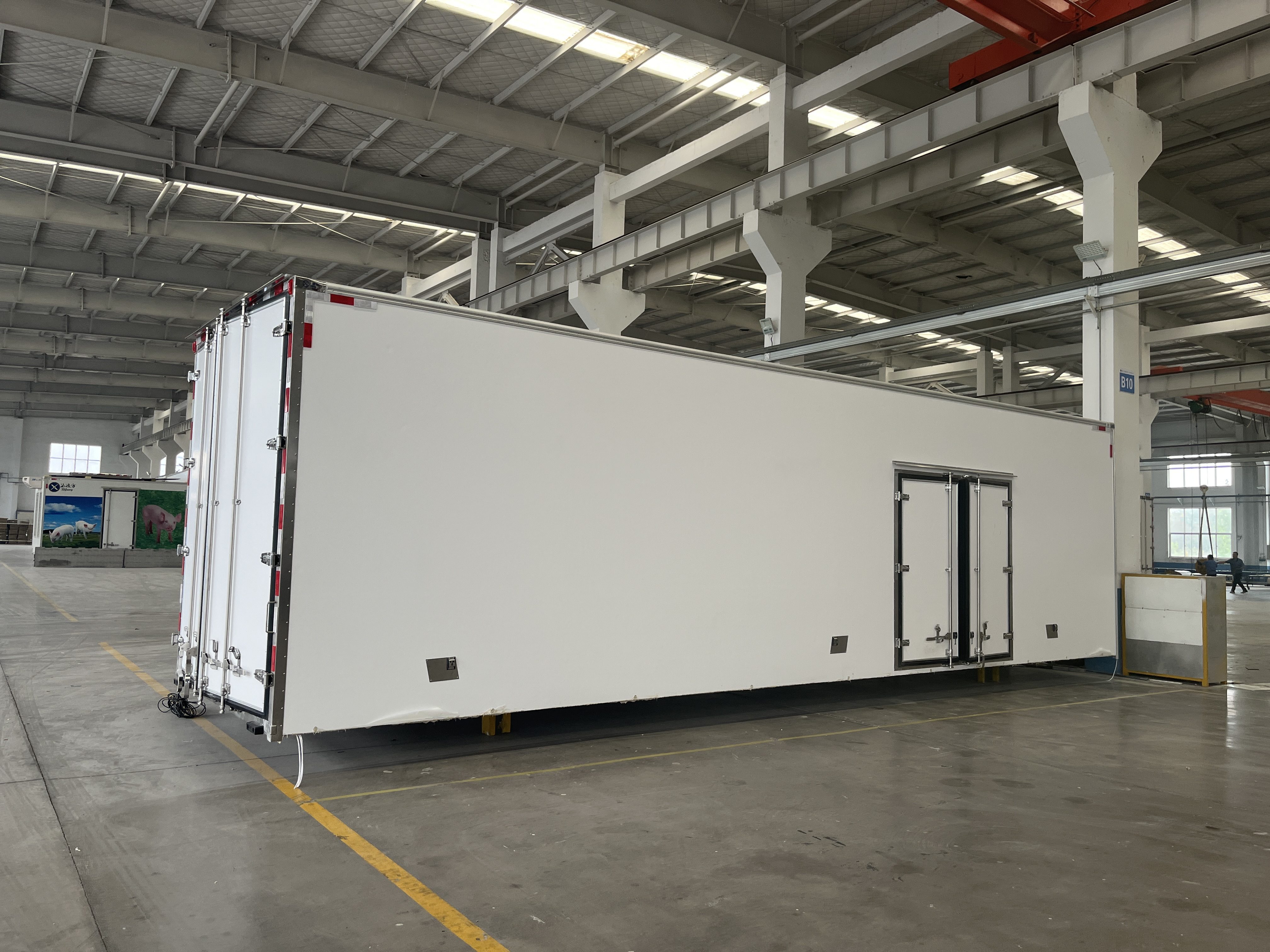

9.6m Heavy Duty Refrigerated Truck Body
Product Description
The 9.6m refrigerated truck body provides approximately 57.8 m³ of cargo space, making it one of the largest single-compartment designs for rigid trucks. It is intended for long-haul trunk cold chain operations carrying high volumes of frozen or chilled loads.
Construction uses polyurethane integral foam injection for a seamless insulation layer and heavy-gauge steel framing for structural strength. The floor handles concentrated pallet loads, and exterior skins are available in FRP or aluminum. This body is typically specified for hub-to-hub cold chain trunk routes requiring thermal stability and long service life.
The 9.6m Heavy Duty Refrigerated Truck Body is built for long-haul trunk cold chain operations where maximum cargo volume, thermal endurance, and structural robustness are non-negotiable. With an interior length of 9,660 mm and a volume of approximately 57.8 m³, this is one of the largest single-compartment refrigerated bodies available for rigid truck chassis, designed to move high-volume frozen or chilled loads over extended distances efficiently.
Manufactured using polyurethane integral foam injection technology, the body achieves a seamless, monolithic insulation layer that virtually eliminates thermal bridging. The substructure is reinforced with heavy-gauge steel framing and a high-capacity floor rated for concentrated pallet loads. The exterior skin is available in both FRP and pre-coated aluminum options. This body is typically specified for hub-to-hub cold chain trunk routes where reliability, thermal stability, and long service life are critical commercial considerations.
Why Choose This Product?
- Industry-leading quality and reliability
- Energy-efficient design for cost savings
- Comprehensive warranty and support
- Easy maintenance and serviceability
Request Information
Interested in this product? Fill out the form below to get detailed information, pricing, and technical documentation.
Quick Specs
Categories
Related Products
Small 4.2m Refrigerated Truck Body – Compact Cold Chain Box for Urban Delivery
Compact 4.2m refrigerated truck body, 18.8 m³ interior, FRP sandwich or PU foam insulation, -25°C...
- Compact urban footprint for narrow streets and loading docks
- FRP sandwich or PU foam insulation (customer option)
- Reliable temperature retention with automotive-grade door seals
4.2m FRP Sandwich Panel Refrigerated Truck Body
The 4.2m FRP Sandwich Panel Refrigerated Truck Body is designed for urban cold chain distribution...
- FRP Sandwich Construction — Glass-reinforced plastic skins bonded to a high-density polyurethane or PIR insulation core deliver superior thermal performance and structural strength.
- Corrosion & Impact Resistant — The FRP exterior resists rust, corrosion, and minor impacts, significantly reducing long-term maintenance costs.
- Optimized Urban Dimensions — 4.08 m interior length and compact overall footprint enable easy navigation through narrow city streets and loading docks.
6.8 m One-Piece PU Foam Refrigerated Truck Body
6.8 m refrigerated truck body made with one-piece polyurethane foam injection, giving a seamless insulation...
- Seamless one-piece foam: a single molding forms the whole insulation layer, eliminating cold bridges and leaking joints.
- Strong insulation performance: closed-cell ratio ≥95% and thermal conductivity ≈0.022 W/(m·K) mean lower energy use on long hauls.
- Lightweight construction: no metal frame; the body is about 200–500 kg lighter overall.
