6.8 m One-Piece PU Foam Refrigerated Truck Body

The workhorse body for mid- to long-haul cold chain — single-shot foam injection forms a seamless insulation layer with no cold bridges.

Product Introduction

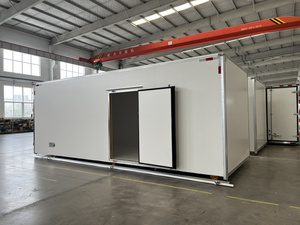

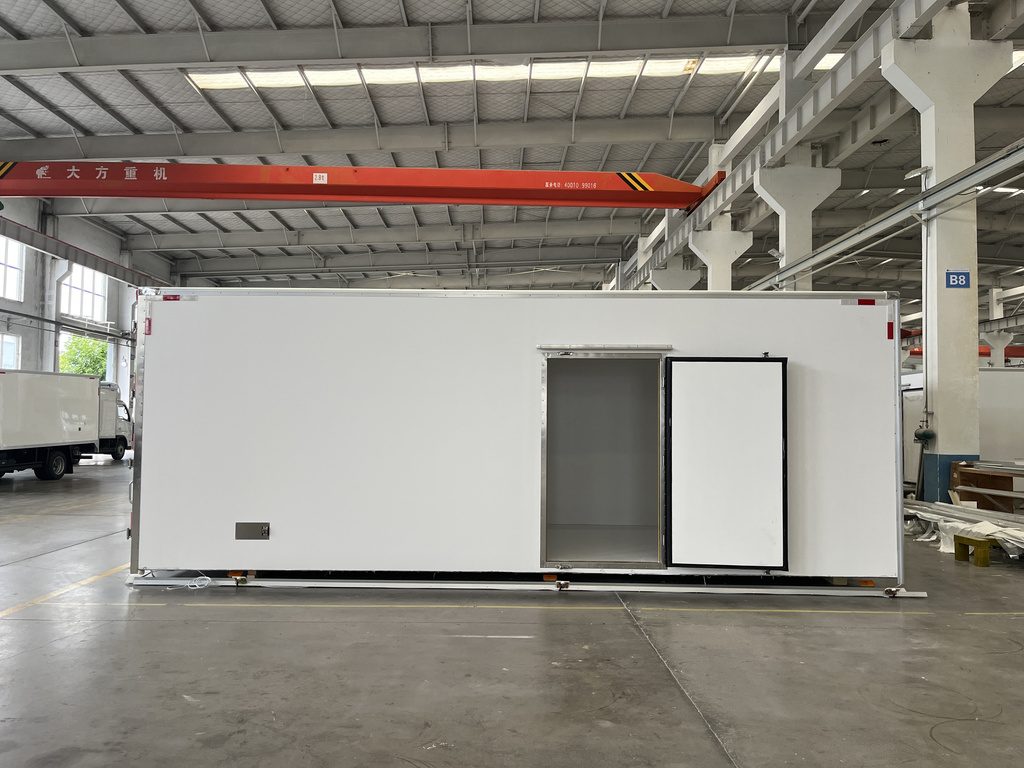

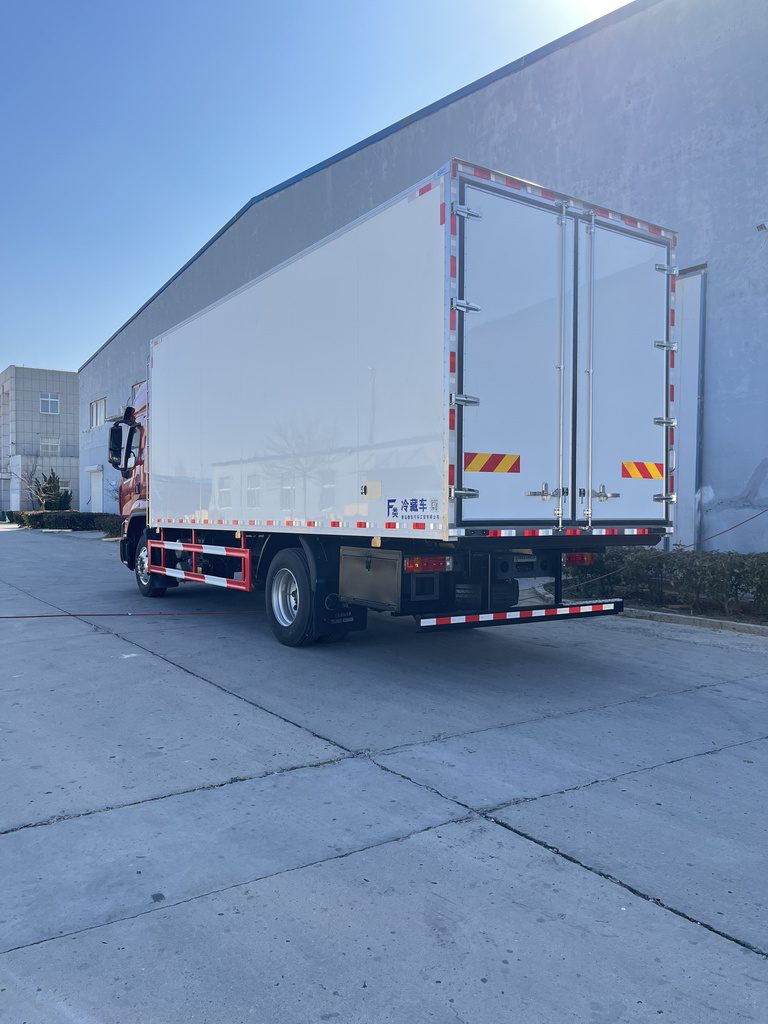

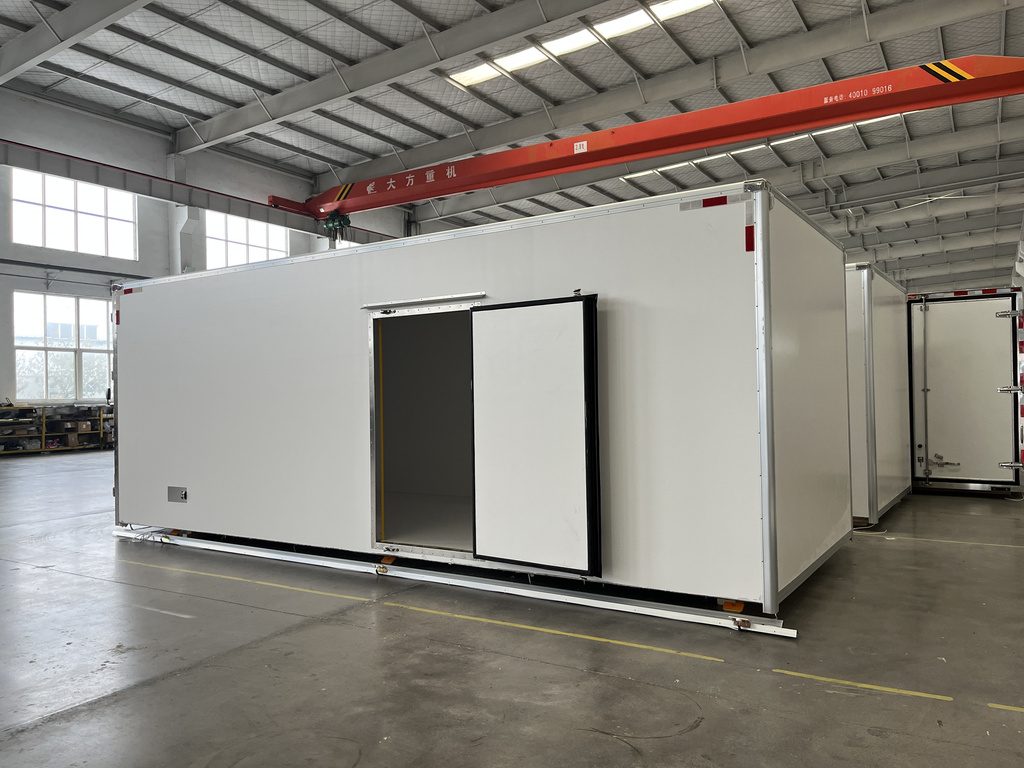

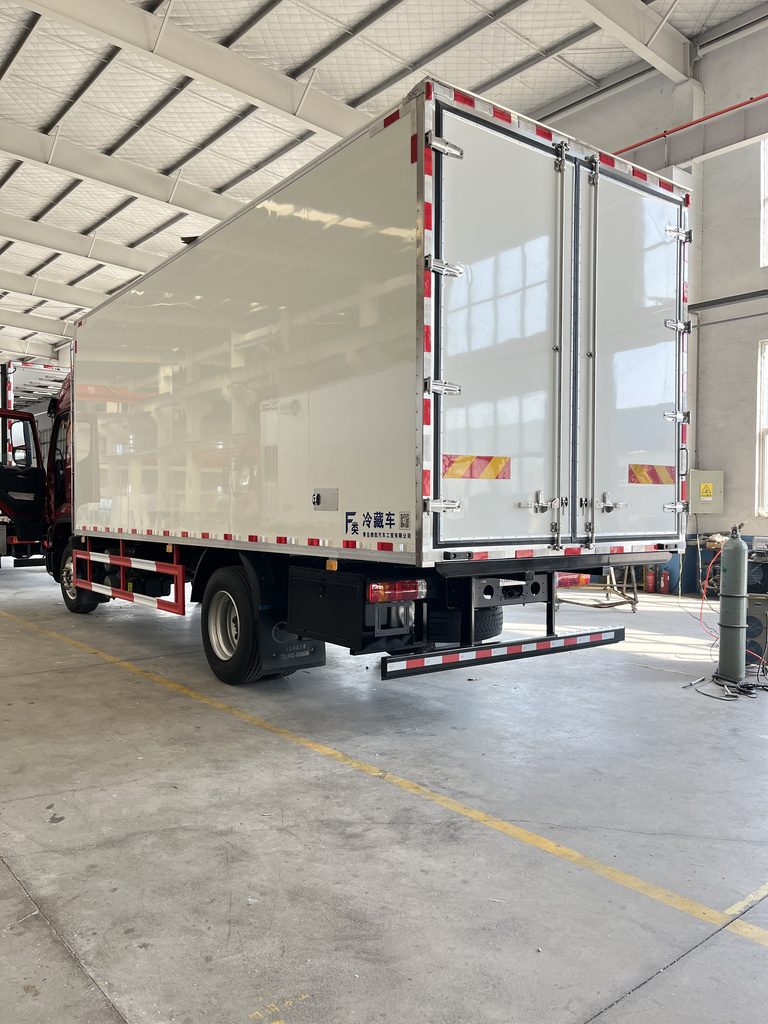

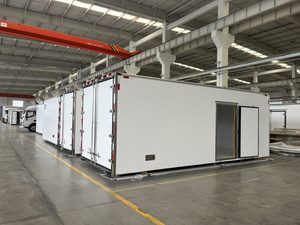

The 6.8 m refrigerated truck body is manufactured with the one-piece polyurethane (PU) foam injection process. Liquid polyurethane is injected between the inner and outer skins and foams and cures in a single shot, forming a seamless, monolithic insulation layer that largely eliminates the cold bridges and joints found in traditional panel-built structures. Thermal performance stays stable and reliable as a result.

With an interior length of 6.8 m and an interior height of 2.48 m, the body offers about 40.7 m³ of cargo space for palletized and bulk frozen or chilled goods. A reinforced floor frame raises the floor load rating to 2,000 kg/m², suiting heavier loads on mid- to long-haul runs. The body fits medium-duty chassis in the 8–12 t gross vehicle weight range, making it a mainstay for regional trunk cold-chain transport.

Factory & Process Credentials

Binglingfang (Qingdao Yakai Automotive Industry And Trade Co., Ltd.) was among the earlier special-purpose vehicle makers in China to complete the shift to polyurethane production lines — the transition was made in 2016 and PU foam production started in 2017 — and its injection foaming technology is mature. The one-piece PU foam insulation layer has a closed-cell ratio of ≥95% and a thermal conductivity of about 0.022 W/(m·K), which keeps heat loss low at equal thickness and can cut long-haul refrigeration energy use by more than 30%. With no metal frame, the body is roughly 200–500 kg lighter than conventional structures. The company runs its own FRP and polyurethane production lines, holds ISO9001 and CCC certification, and is recognized as a national high-tech enterprise.
