Refrigerated Truck Body with Floor Rack & Ventilation System
Product Description
The Refrigerated Truck Body with Floor Rack & Ventilation System is purpose-engineered for the transport of fresh produce, cut flowers, and other perishable goods that require active air circulation around the cargo. The defining feature is the integrated T-shaped ventilation channel floor system, which allows cool air from the reefer unit to circulate beneath pallets and through the cargo stack, preventing hot spots and maintaining uniform temperature distribution throughout the load.

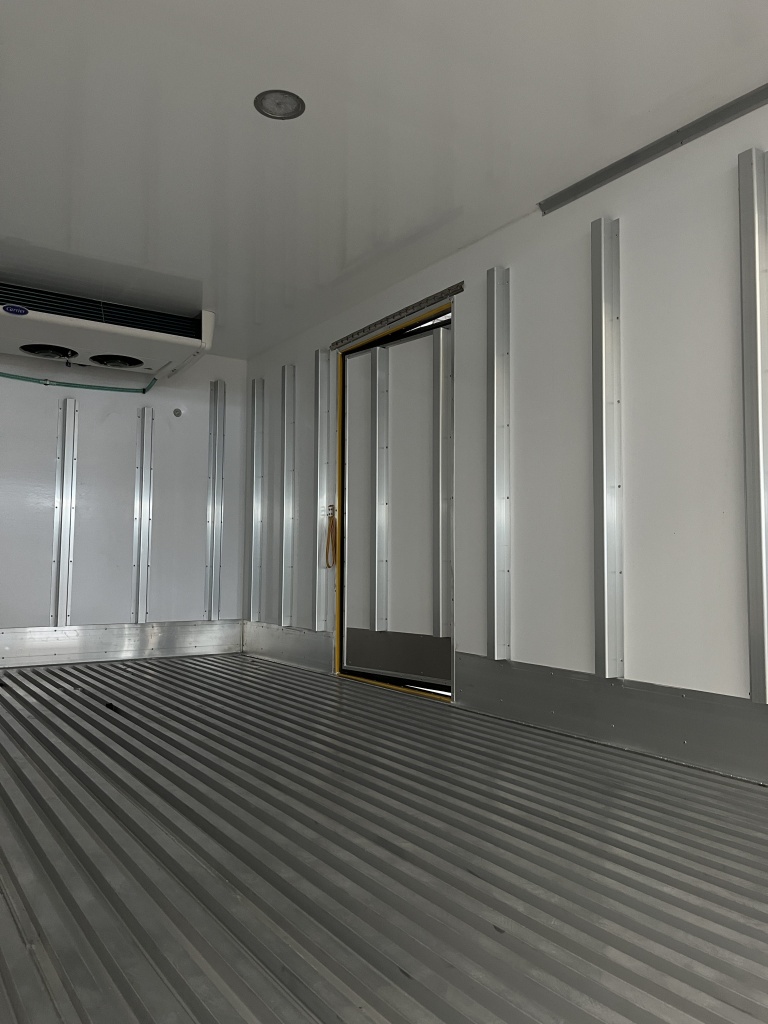

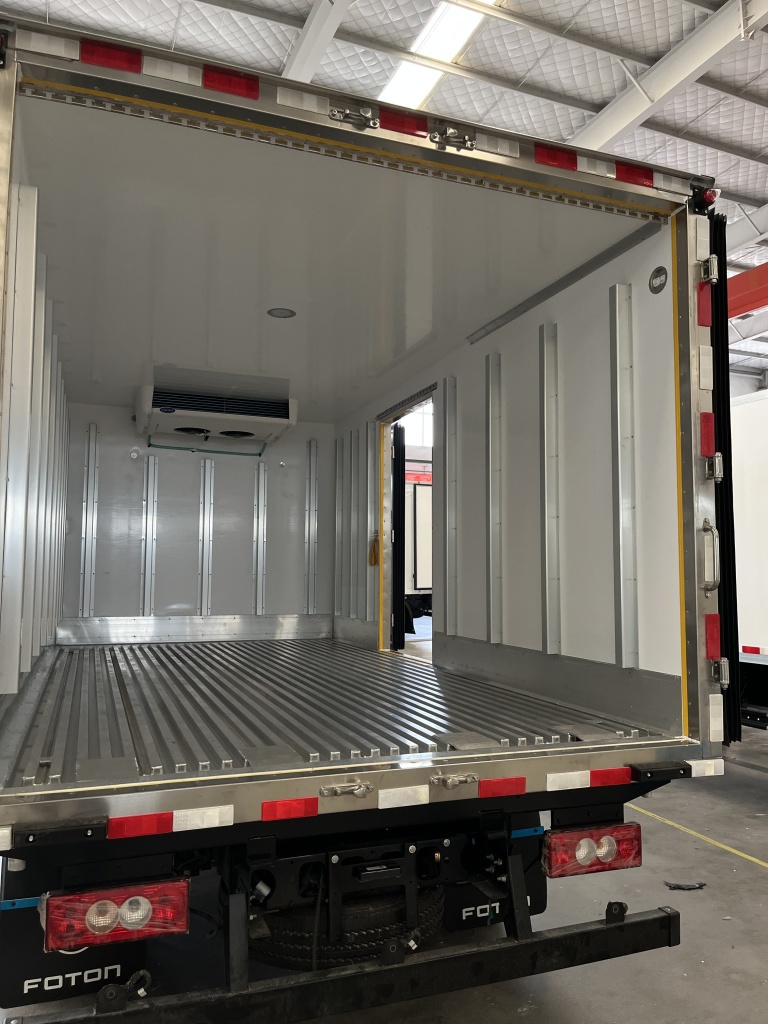

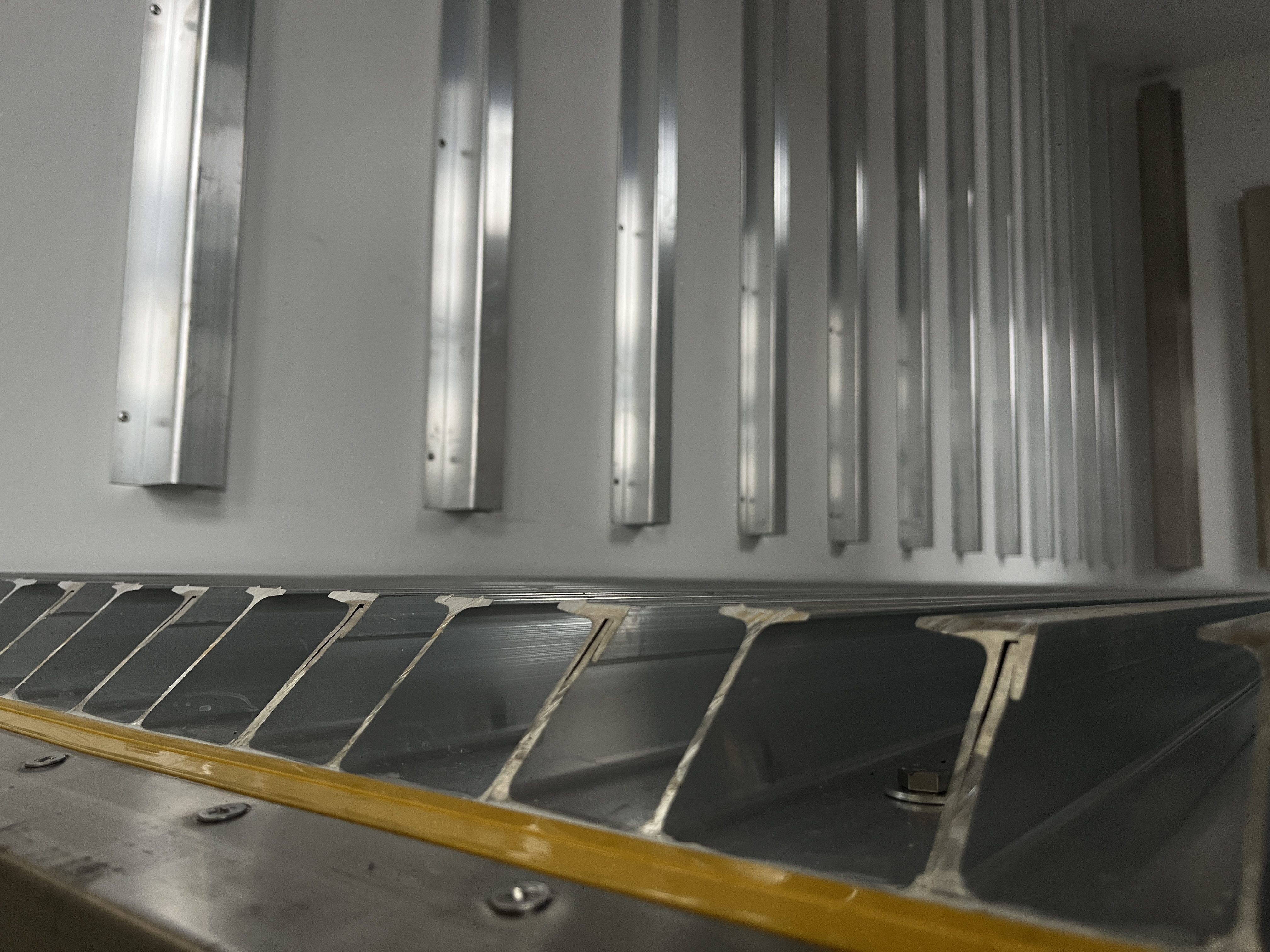

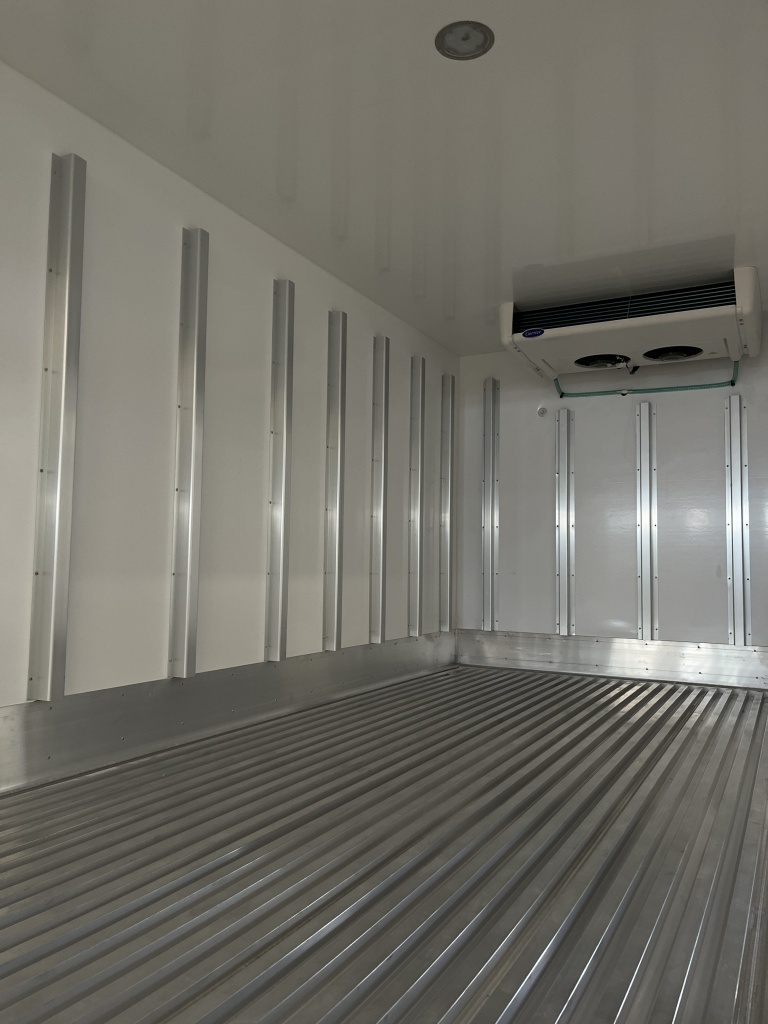

The body is constructed using the FRP sandwich panel method, providing excellent thermal insulation while accommodating the integrated floor ventilation structure. The floor incorporates extruded aluminum T-track channels spaced at regular intervals, creating air gaps beneath pallets for continuous airflow. The system can be paired with optional adjustable shelving or flow-through rack systems for loosely packed or bagged produce. Additional features include a fully draining floor with rear drain outlets and an optional anti-slip floor surface for wet-load operations. Stainless steel drip trays and wall ventilation panels are available for enhanced air circulation in full-pallet loads.
Why Choose This Product?
- Industry-leading quality and reliability
- Energy-efficient design for cost savings
- Comprehensive warranty and support
- Easy maintenance and serviceability
Request Information
Interested in this product? Fill out the form below to get detailed information, pricing, and technical documentation.
Quick Specs
Categories
Related Products
Export Refrigerated Truck, Integral Polyurethane Foam Cargo Box, Custom Reefer Truck Factory Supply
A manufacturer produces refrigerated trucks with a one-piece polyurethane foam cargo box that provides stable...
- Integral One-piece Polyurethane Foam Cargo Box：Adopt integral integral PU foam molding technology, seamless integrated carriage body, uniform insulation layer density, avoid splicing gap effectively
- Stable Heat Preservation Performance：Excellent thermal insulation effect, stable constant temperature control, reduce cold loss during long-distance cross-border transportation
- Durable Carriage Structure：Integr foamed box avoids delamination, water seepage and deformation, long service life, adapt to complex overseas road and climate
7.8m Multi-Temperature Refrigerated Truck Body
The 7.8m Multi-Temperature Refrigerated Truck Body addresses the growing demand for split-load cold chain transport,...
- Dual-Zone Independent Temperature Control — A sealed, insulated partition divides the body into two compartments, each with separate evaporators and thermostatic controls for independent temperature management.
- Movable Partition System — The partition glides on recessed rail tracks embedded in the sidewalls and can be repositioned in minutes to flexibly allocate cargo space by temperature requirement.
- Dual Construction Options — Available in lightweight FRP sandwich panel or high-insulation PU integral foam construction, allowing operators to optimize between cost, weight, and thermal performance.
Ventilated-Floor Refrigerated Truck Body (for Fresh Produce)
Refrigerated truck body with T-type aluminum ventilation channels in the floor, keeping cold air moving...
- Full-length floor ventilation: T-type channels circulate cold air evenly beneath the cargo for fast heat removal.
- Lower produce spoilage: respiration heat is carried away effectively, keeping goods fresh longer.
- Efficient drainage: integrated drain channel with a rear ball valve drains condensate quickly.
