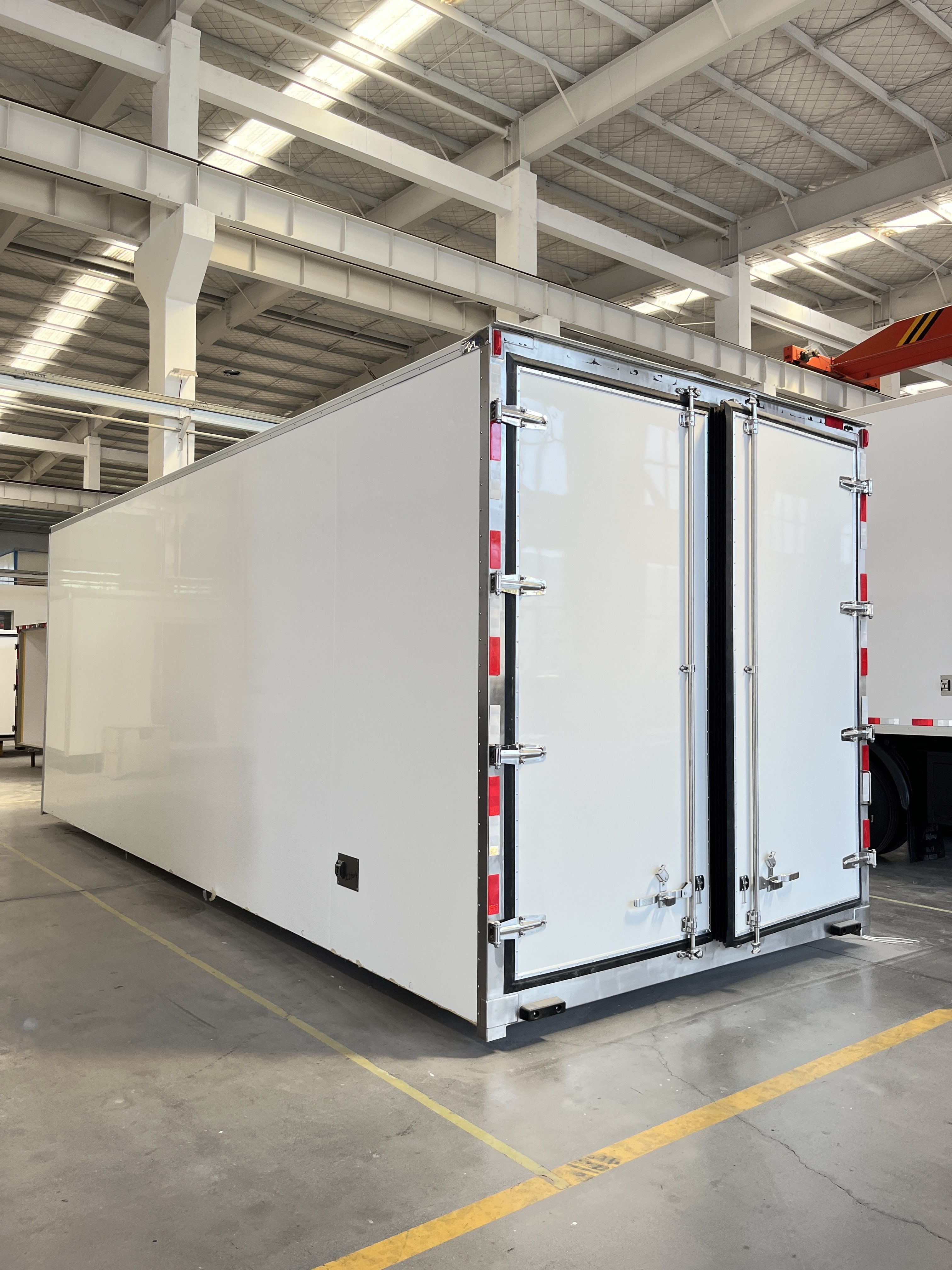

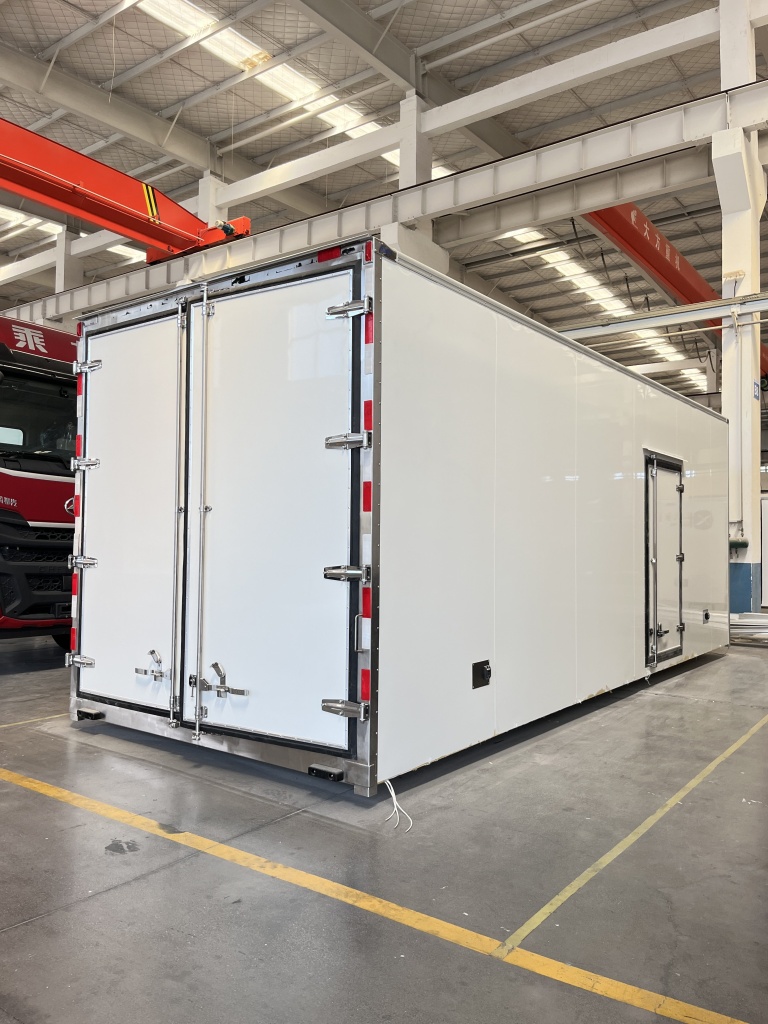

6.8m FRP Refrigerated Truck Body with PU Foam Insulation
Product Description
The 6.8m FRP Refrigerated Truck Body with PU Foam is engineered for medium to long-distance cold chain logistics requiring substantial cargo volume and reliable temperature retention. With an interior volume of approximately 40.7 m³, this body is manufactured using full polyurethane (PU) integral foam injection technology — a process that ensures a seamless, void-free insulation layer with no thermal bridges.
Measuring 6,800 mm in interior length with a generous 2,480 mm headroom, this body accommodates palletized and bulk shipments of frozen, chilled, and temperature-sensitive goods over regional transit routes. The exterior can be finished with FRP or pre-coated aluminum skins depending on application requirements. Optional features include dual-temperature zone partition systems for mixed-load operations and hydraulic tailgate lifts for ground-level loading and unloading.
Key Specifications
| Specification | Value |
| Overall Exterior Length | ~8,990 mm (chassis dependent) |
| Interior Dimensions (L×W×H) | 6,800 × 2,410 × 2,480 mm |
| Interior Volume | ~40.7 m³ |
| Construction Method | PU integral foam injection (one-shot foaming) |
| Panel Thickness | 80–100 mm (variable by zone) |
| Floor Load Capacity | 2,000 kg/m² (reinforced floor frame) |
| Operating Temperature Range | -25 °C to +15 °C |
| Chassis Compatibility | 6.8 m medium-duty truck chassis (≈8–12 ton GVW) |
Key Features
- PU Integral Foam Injection — One-shot polyurethane foam injection eliminates cavities and voids, providing uniform thermal insulation across the entire body structure.
- Dual-Temperature Zone Option — A movable partition wall allows the body to be divided into separate frozen and chilled compartments, each with independent temperature control.
- Hydraulic Tailgate Compatibility — Reinforced rear frame accommodates standard hydraulic lift tailgates for efficient ground-level loading.
- Large Payload Capacity — 2,000 kg/m² floor rating supports palletized heavy loads, maximizing transport efficiency on medium-distance routes.
- FRP or Aluminum Exterior — Choose between corrosion-resistant FRP or lightweight pre-coated aluminum external skins to match operational priorities.
- Full Floor Drainage — Integrated drainage channels prevent standing water and simplify wash-down sanitation procedures.
Applications
- Regional cold chain distribution between cities (150–500 km radius)
- Bulk frozen food transport (meat, seafood, frozen vegetables)
- Dairy and ice cream supply chain logistics
- Dual-temperature deliveries combining frozen and chilled goods
- Beverage and temperature-sensitive ingredient distribution
Why Choose This Product?
- Industry-leading quality and reliability
- Energy-efficient design for cost savings
- Comprehensive warranty and support
- Easy maintenance and serviceability
Request Information
Interested in this product? Fill out the form below to get detailed information, pricing, and technical documentation.
