Constant Temperature Chick Vehicle - 8 Integrated Systems
Product Description

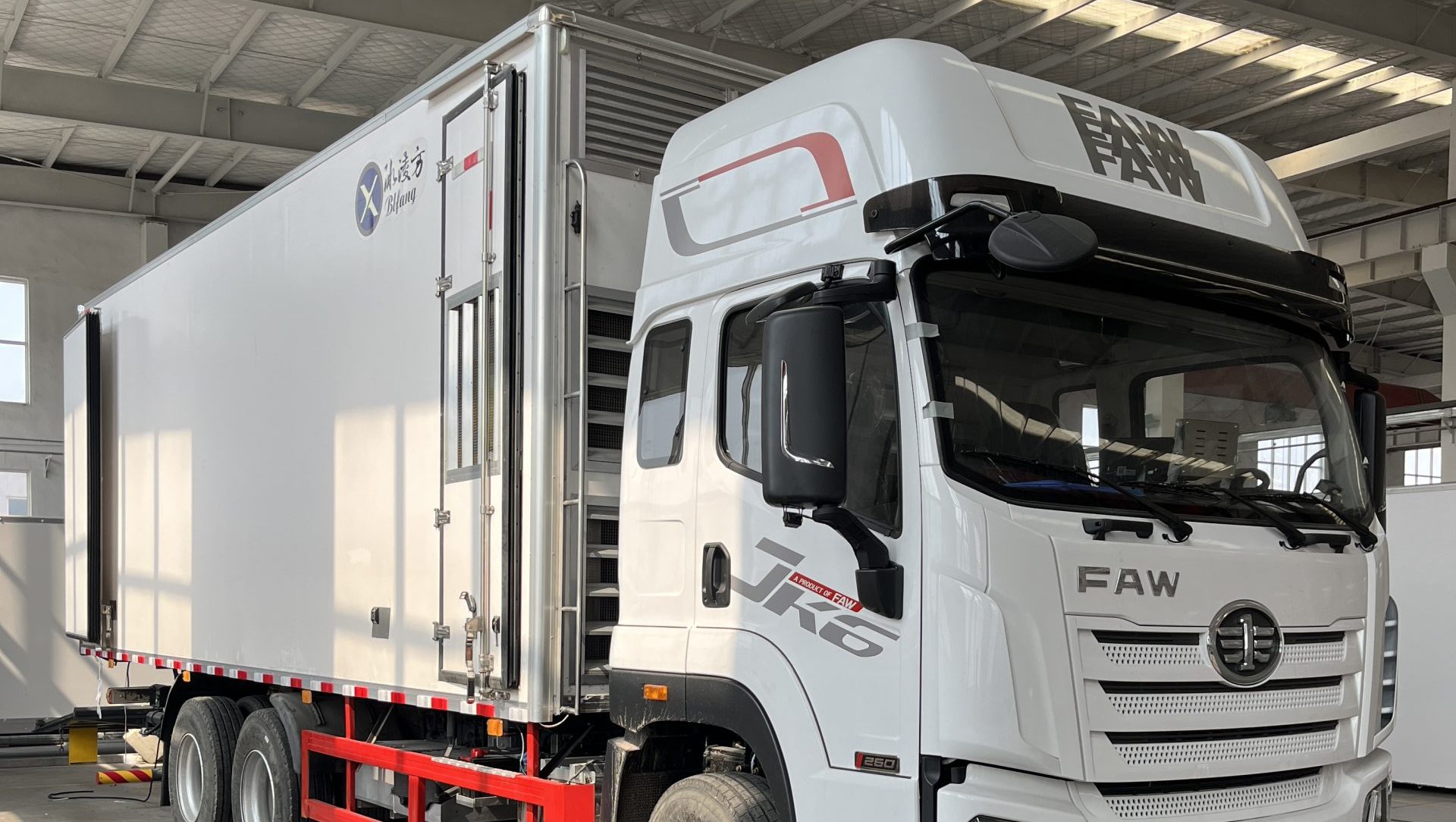

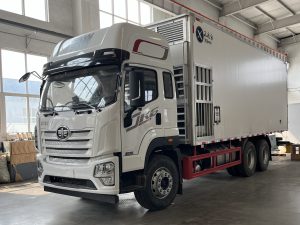

Constant Temperature Chick Transport Vehicle - 8 Integrated Systems
The constant temperature model builds on the ventilated base with 8 integrated systems. This isn't just "adding an A/C unit" — it's a complete environmental control solution.
1. Refrigeration System
Independent engine + independent A/C system. Cooling capacity: 50-70kW. The independent engine means cooling keeps running while the truck is parked with the main engine off.
2. Heating System
Fuel-fired heater + expansion tank + hot water coils + fans. Heat output: 15-35kW. In sub-zero winter conditions, interior temperature stays above 22°C.
3. Environmental Control System
The brain of the operation. Fresh/return/exhaust air control. Temperature, humidity, CO₂, and pressure sensors feed real-time data to automatically adjust damper positions.
4. Humidification System
High-pressure pump + water mist nozzles + tank + stainless steel piping. Long-distance transport needs humidity management, not just temperature.

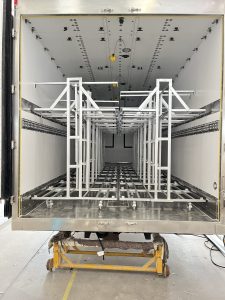

5. Loading System
Transport trolleys with locking bars. Standard KLC hydraulic lift gate. The 9.6m model comes with 24 trolleys, 26 boxes per trolley.
6. Filtration System
Bag-type primary filter for chick down (feathers/fluff). Chicks shed down during transport, which clogs evaporator fins over time. This system handles that.
7. Monitoring System
Interior camera + backup camera. Driver sees the cargo area from the cab in real time.
8. Emergency System
Chassis-powered generator + backup power supply. If the main engine fails, environmental control continues.

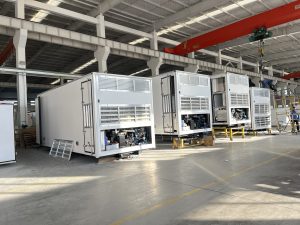

All equipment is mounted inside the body — no external units visible. Unlike standard refrigerated trucks with a front-mounted condenser, the constant temperature chick vehicle looks clean and can't be mistaken for a regular reefer.
Operating range: ambient -35°C to +40°C. Target interior: 22-26°C. CO₂ limit: ≤3000 PPM (target 2800). Body material: FRP skin with insulation core.
Why Choose This Product?
- Industry-leading quality and reliability
- Energy-efficient design for cost savings
- Comprehensive warranty and support
- Easy maintenance and serviceability
Request Information
Interested in this product? Fill out the form below to get detailed information, pricing, and technical documentation.
Quick Specs
Categories
Related Products
Export Custom Constant Temperature Chick Transport Truck | Independent Power & Intelligent Temperature Control
Custom export constant temperature chick transport truck with independent cabin power system and intelligent adjustable...
- - Independent Cabin Power System – No power interruption, stable temperature control all the time
- - Intelligent Temperature Adjustment – Precise & automatic constant temperature for chick safety
- - Dual Ventilation Design – Fresh air circulation without temperature loss
9.6 m Constant Temperature Day-Old Chick Transport Truck
A 9.6 m constant temperature day-old chick transport truck for high-volume trunk routes, carrying 624...
- Trunk-route capacity: 624 boxes (about 62,400 chicks) for cross-region bulk transport.
- Independent engine, real air conditioning: the A/C system runs on its own power, so cooling and heating stay stable on long hauls.
- 8 integrated systems, full coverage: refrigeration, heating, environment control, humidification and filtration all run automatically.
Chick Transport Truck with CO₂ Monitoring & Auto Fresh Air Damper – Binglingfang
Day-old chicks produce significant CO₂ and ammonia during transport, and elevated concentrations directly impact survival...
- Precision CO₂ Management: NDIR sensor with 0–5000 PPM range triggers fresh air intake before CO₂ reaches harmful levels, preventing hypoxia and respiratory stress in chicks.
- Automatic Fresh Air Damper: Motorized proportional damper adjusts intake opening based on real-time CO₂ and NH₃ readings, balancing air renewal with temperature stability.
- 6-Zone Temperature Monitoring: Six strategically placed sensors provide a complete thermal map of the cargo area, with temperature differences across zones visible on the display.
