4.2m Day-Old Chick Transport Truck Body

## Product Overview

The **Binglingfang 4.2m Chick Transport Truck Body** is a specialized ventilated cargo body engineered for the safe, humane long-distance transportation of day-old chicks. Built with the same proven FRP sandwich construction used in our refrigerated truck bodies, this unit provides excellent thermal insulation while maintaining the critical airflow newborn chicks require. Every design element — from the intake louvers to the roof exhaust fans — is purpose-built for one goal: delivering more live chicks per trip.

---

## Key Features

### Superior Ventilation System

Chick survival depends on constant fresh air. The 4.2m body features a multi-point ventilation architecture:

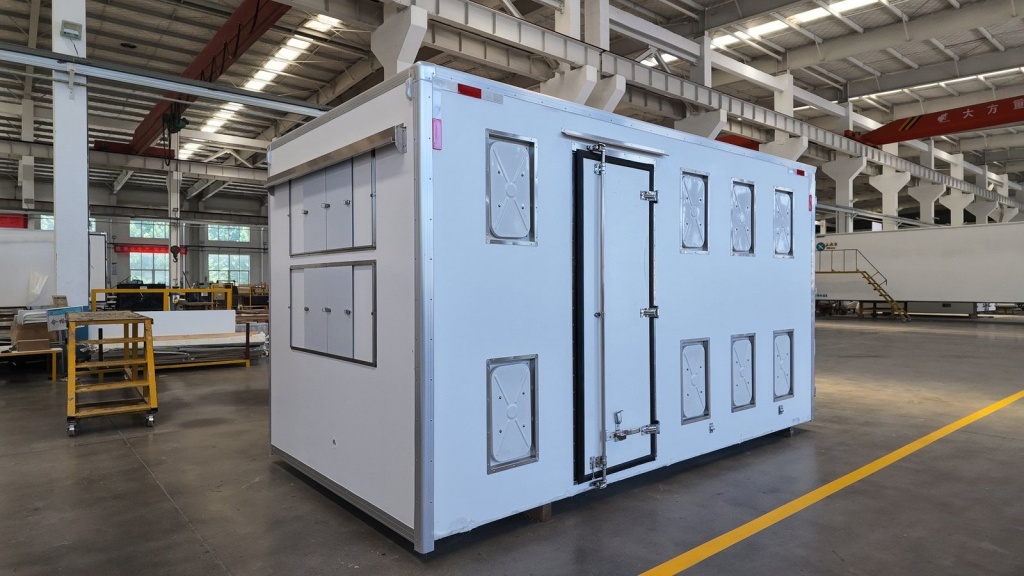

- **Front panel** — Vertical air intake louvers on both sides with manual dampers, plus a central fan position with its own manual damper. One high-capacity circulation fan is standard (two optional).

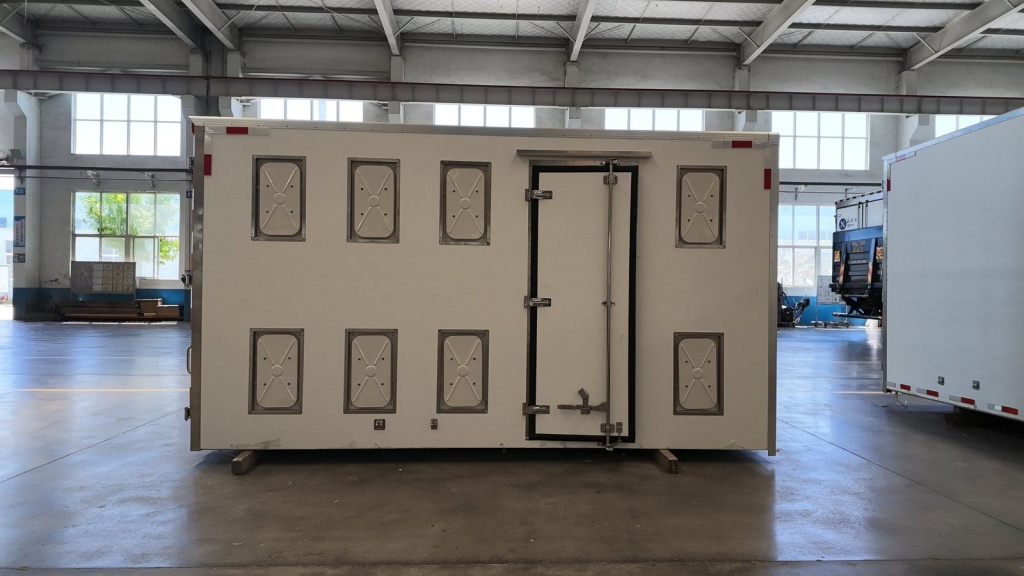

- **Side panels** — Upper and lower ventilation windows run the length of the body. Standard windows with manual adjustment; optional stainless steel one-way louvered vents for automated operation.

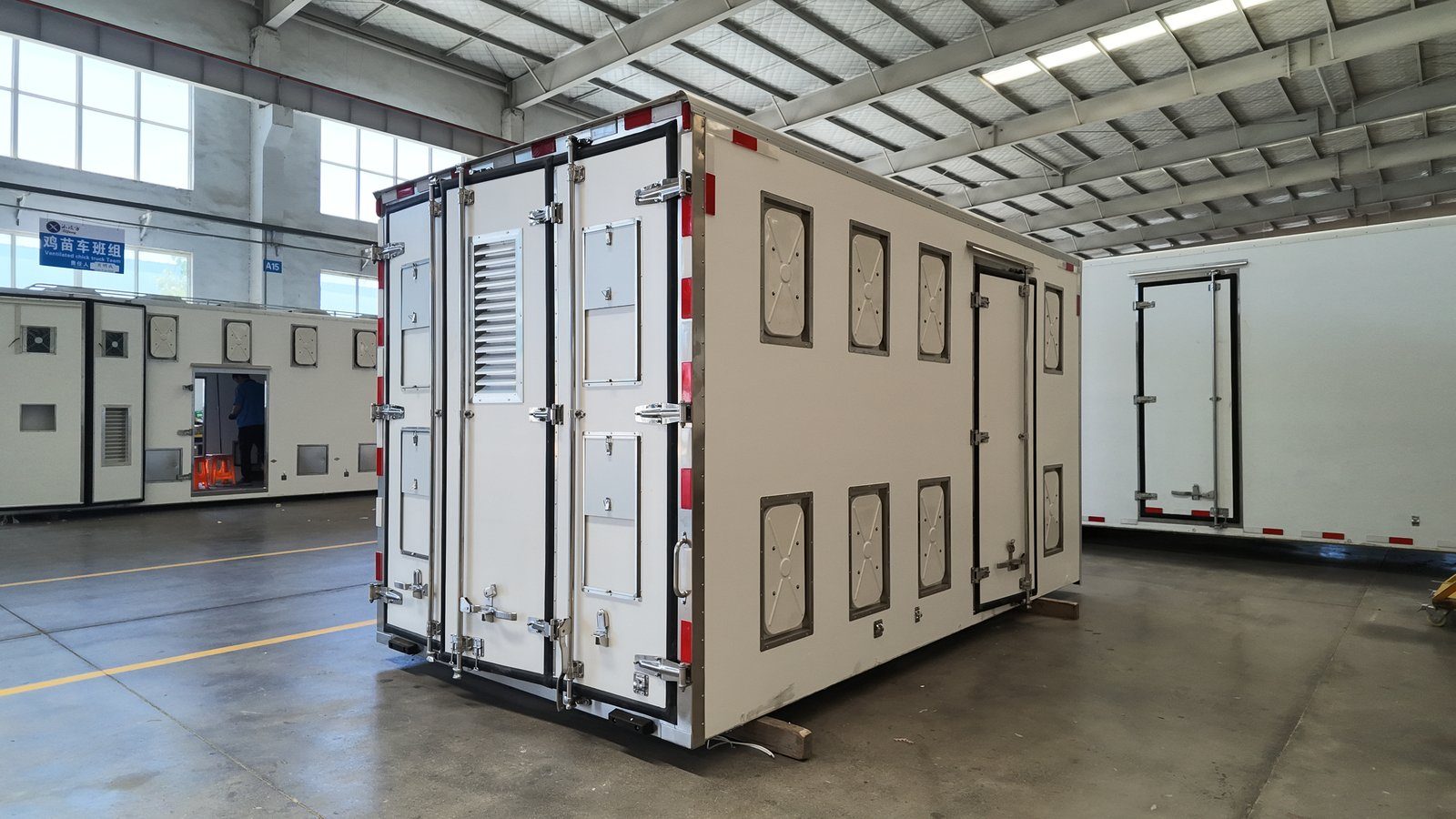

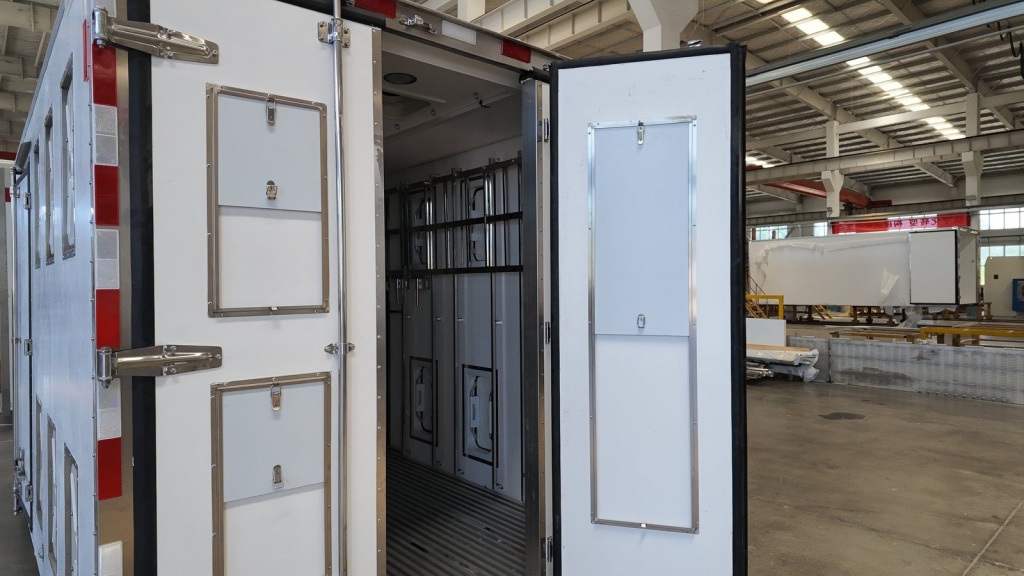

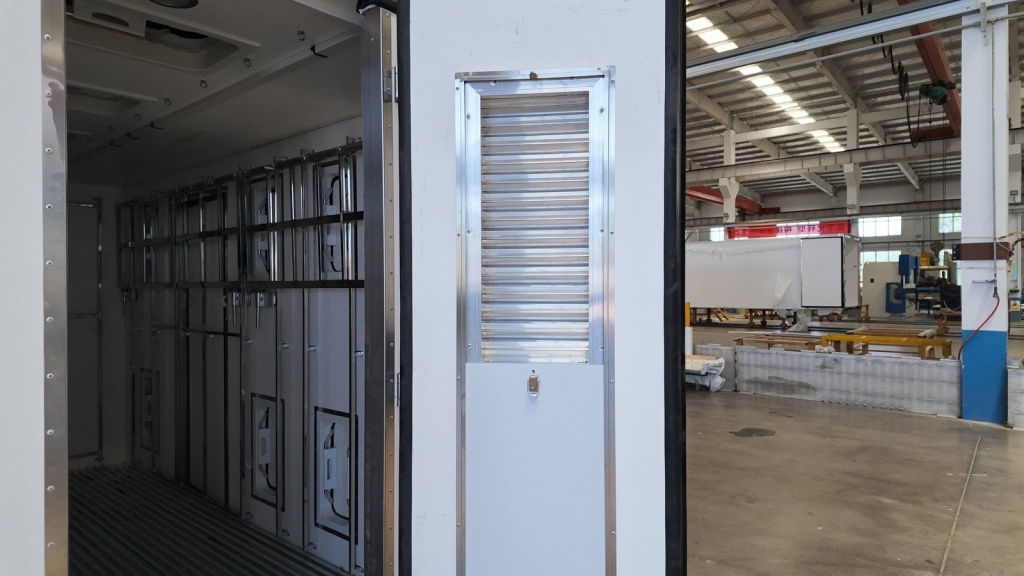

- **Rear doors** — Three-panel folding doors with a center louvered section that can be opened independently, creating a powerful cross-breeze from front to rear. Optional rear-mounted circulation fan.

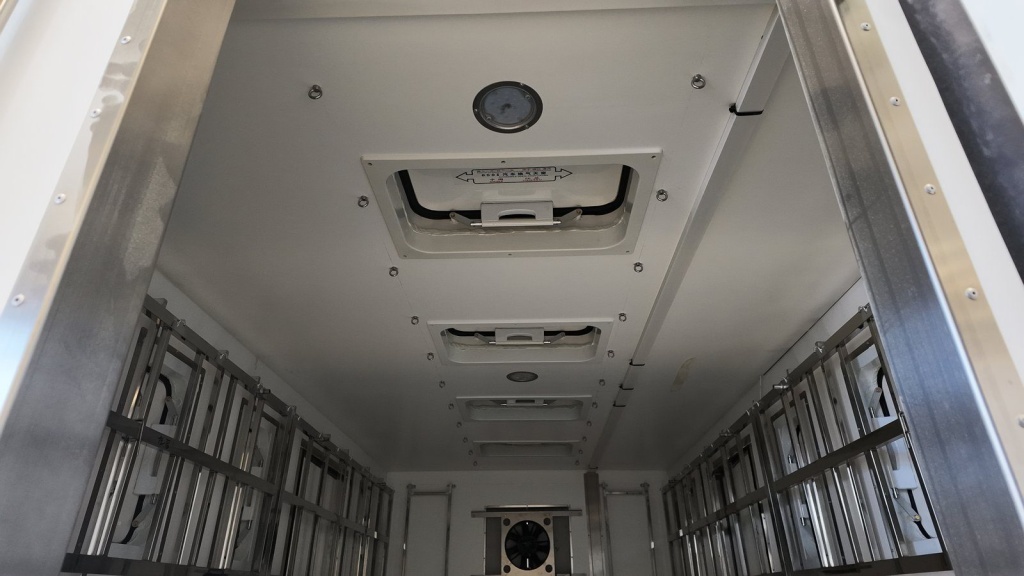

- **Roof** — Central ridge skylight plus side exhaust outlets each with an exhaust fan, providing passive and active top-down air extraction.

This design creates a controlled positive-pressure airflow path — fresh air in through the front, cross-flow across every chick box, and stale air expelled through the roof — ensuring even the center of a full load receives adequate oxygen.

### Insulated FRP Construction

- **Panels** — Glass-fiber reinforced plastic (FRP) outer and inner skins bonded to a structural insulation core
- **Process** — Dry-bonded sandwich lamination (FRP + pre-cut insulation board + structural adhesive → hydraulic press curing)
- **Benefits** — Lightweight yet strong, excellent thermal insulation to buffer temperature swings, corrosion-proof, easy to clean and sanitize between loads

The insulation layer is critical even for non-refrigerated chick transport: it prevents solar heat gain from roasting the compartment and retains the natural metabolic heat of the chicks on cold-weather runs.

### Stainless Steel Interior

- **Loading racks** — Heavy-duty stainless steel 2-tier shelving system, built to hold standard chick box dimensions (640×480×170mm). Corrosion-proof and easy to hose down.
- **Floor** — T-shaped ventilation channels as standard equipment, allowing airflow to reach the bottom boxes and preventing waste accumulation.
- **Side door** — One ventilation side door per side, providing access for monitoring and emergency ventilation at stops.

### Ventilation Side Door

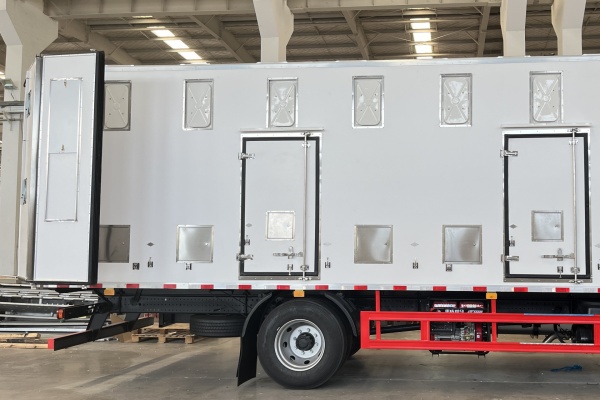

A dedicated side door with ventilation function is positioned on each side of the body. On the 4.2m model, one door per side serves as both a load-access point and an additional air inlet when partially opened. Available in manual or optional upgraded configurations.

## Technical Specifications

| Specification | Detail |
|:---|---:|
| **Overall Vehicle Length** | 4.2 m (approx. 14 ft) |
| **Internal Body Dimensions** | 4080 × 2100 × 2200 mm |
| **Body Material** | FRP skin + Insulation core (sandwich construction) |
| **Loading Capacity** | **232 boxes** |
| — Side rack loading | 192 boxes (96 per tier) |
| — Middle floor loading | 40 boxes |
| **Chick Box Size** | 640 × 480 × 170 mm |
| **Loading Racks** | 2 tiers, stainless steel |
| **Standard Fans** | 1 front circulation fan (2 optional) |
| **Roof Exhaust Fans** | 2 (one per side outlet) |
| **Ventilation Dampers** | Manual (all intake positions) |
| **Side Doors** | 1 per side (ventilated design) |
| **Rear Doors** | Triple folding, center louvered |
| **Floor** | T-shaped ventilation channels (standard) |

### Optional Upgrades

| Category | Options |
|:---|---|
| **Temperature Control** | Underfloor heating, diesel-fired coolant heater, roof-mount air conditioner |
| **Monitoring** | Video surveillance system, temperature probes, CO₂ + ammonia gas detection |
| **Power Supply** | 220V diesel generator for continuous fan and monitoring operation |
| **Ventilation** | Upgraded stainless steel one-way louvered vents; additional circulation fans |
| **Chassis Compatibility** | Foton / JAC / Dongfeng light trucks (4.2 m cargo bed, blue-plate legal in China; equivalent international chassis upon request) |

---

## Application Scenarios

### Hatchery → Farm Delivery

Primary use case: day-old chicks from centralized hatcheries to grow-out farms, typically within 4–12 hours of driving distance. The ventilation system maintains livability through all seasons, while the optional CO₂/ammonia sensors alert drivers to air-quality issues before they become critical.

### Chick Logistics Companies

For operators running multiple loads per week, the FRP body is easy to pressure-wash and sanitize between batches — no rust, no trapped organic matter in seams. The stainless steel racks resist corrosion from ammonia and repeated cleaning cycles.

### Poultry Integrators

The optional temperature control package (heating + cooling + monitored) gives vertically integrated poultry companies the ability to standardize transport conditions across their fleet, reducing mortality variability regardless of route or weather.

---

## Why Choose Binglingfang?

- **Specialized expertise** — We build chick transport bodies as a dedicated product line, not as a modified cargo box. Every airflow detail is engineered from years of operator feedback.
- **Proven construction** — FRP sandwich technology trusted by cold-chain and live-transport operators worldwide. The same insulation process our refrigerated bodies use.
- **Field support** — Comprehensive after-sales parts and service network. Our team works directly with operators to optimize ventilation settings for specific routes and climates.
- **Custom chassis fit** — We can adapt the body to match your preferred light-truck chassis brand and cab-to-axle dimension.
