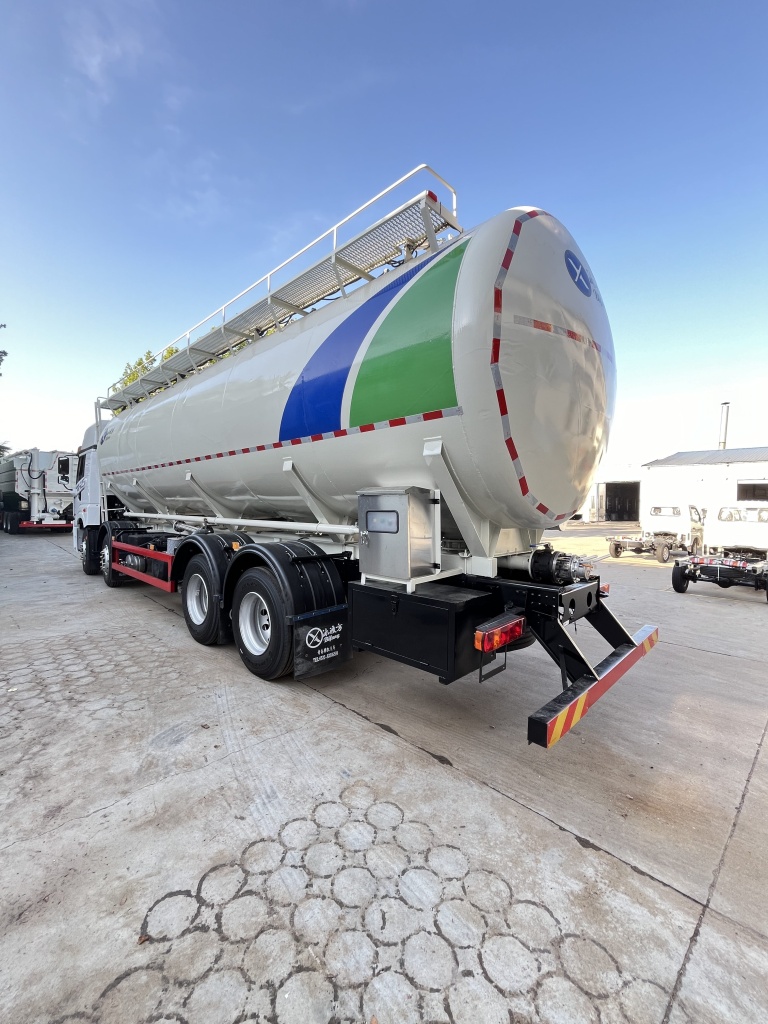

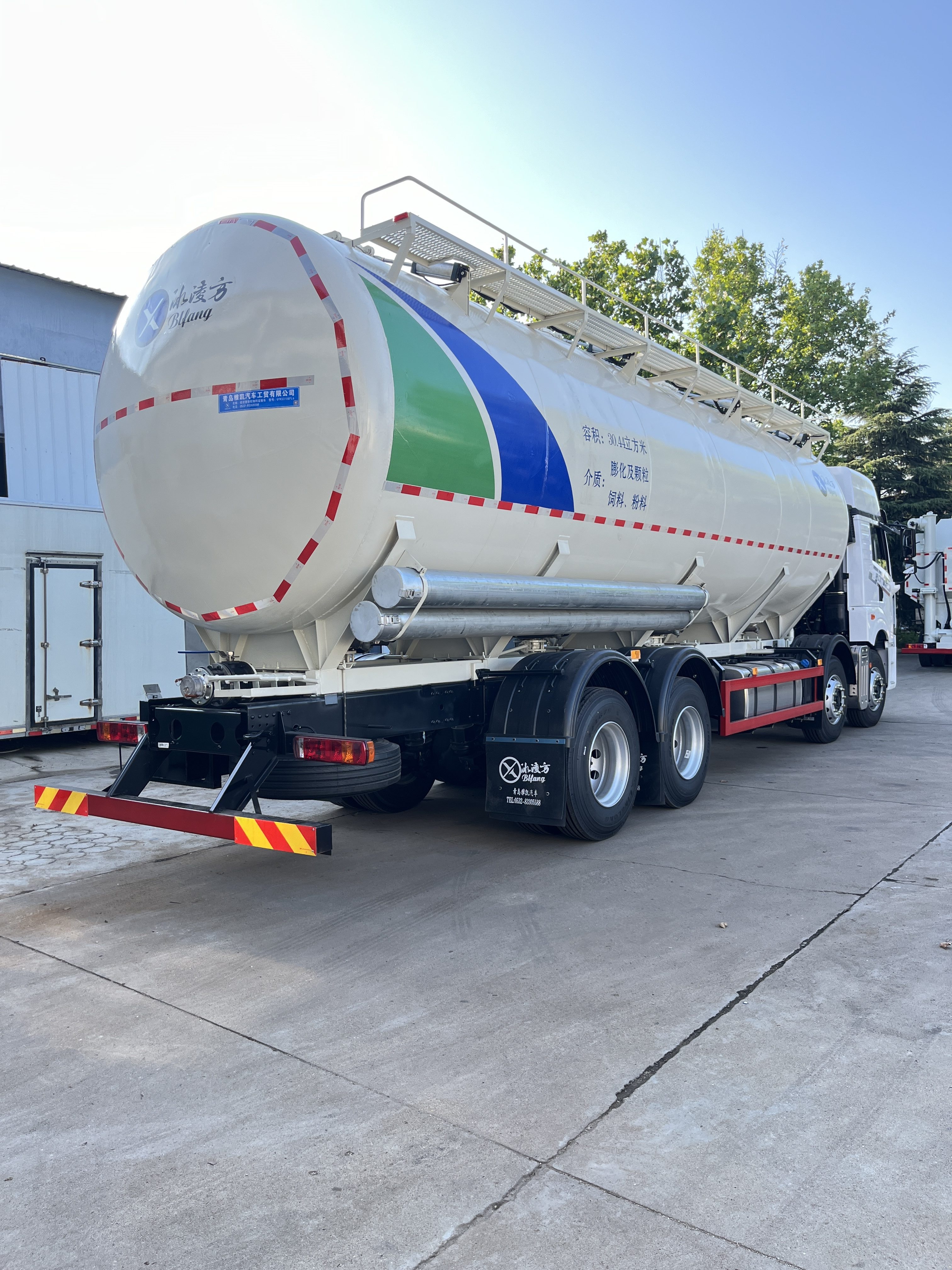

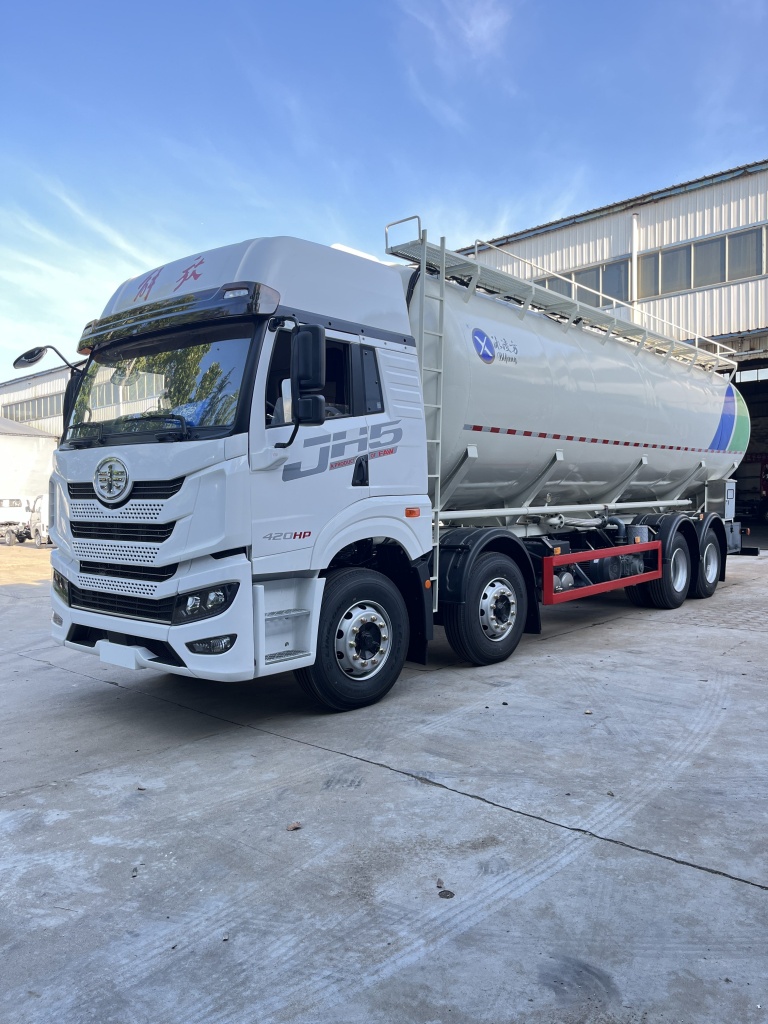

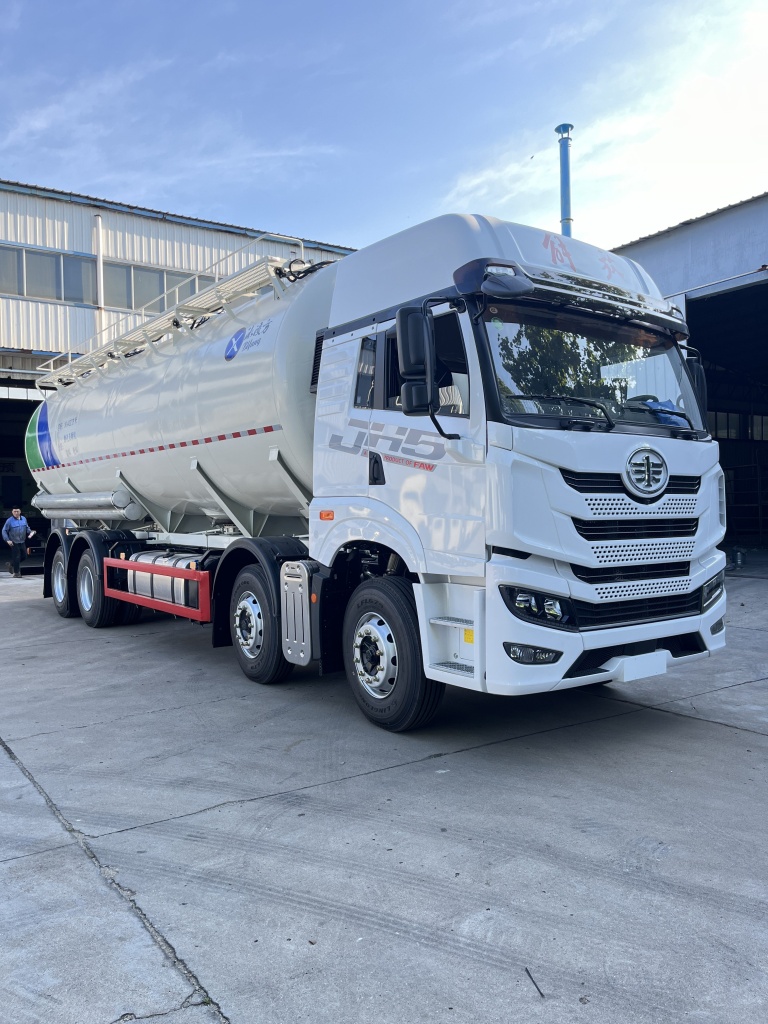

Pneumatic Discharge Bulk Feed Transport Truck (QYK5310GFL6)

Discharges via pneumatic conveying on external 380V power. 31.95 m³ four-compartment tank, residual rate below 0.01% — a preferred choice for feed mill unloading systems.

Product Introduction

The pneumatic discharge bulk feed transport truck (MIIT-approved model QYK5310GFL6) is a core model in the Binglingfang (Qingdao Yakai Automotive Industry And Trade Co., Ltd.) bulk feed truck line, built for high-efficiency bulk feed transfer at large livestock farms and feed mills. Feed is unloaded pneumatically: an external 380V power supply drives an imported air compressor, and feed moves through sealed piping straight into the feed silo — doing away with the high cost and low efficiency of bagged transport.

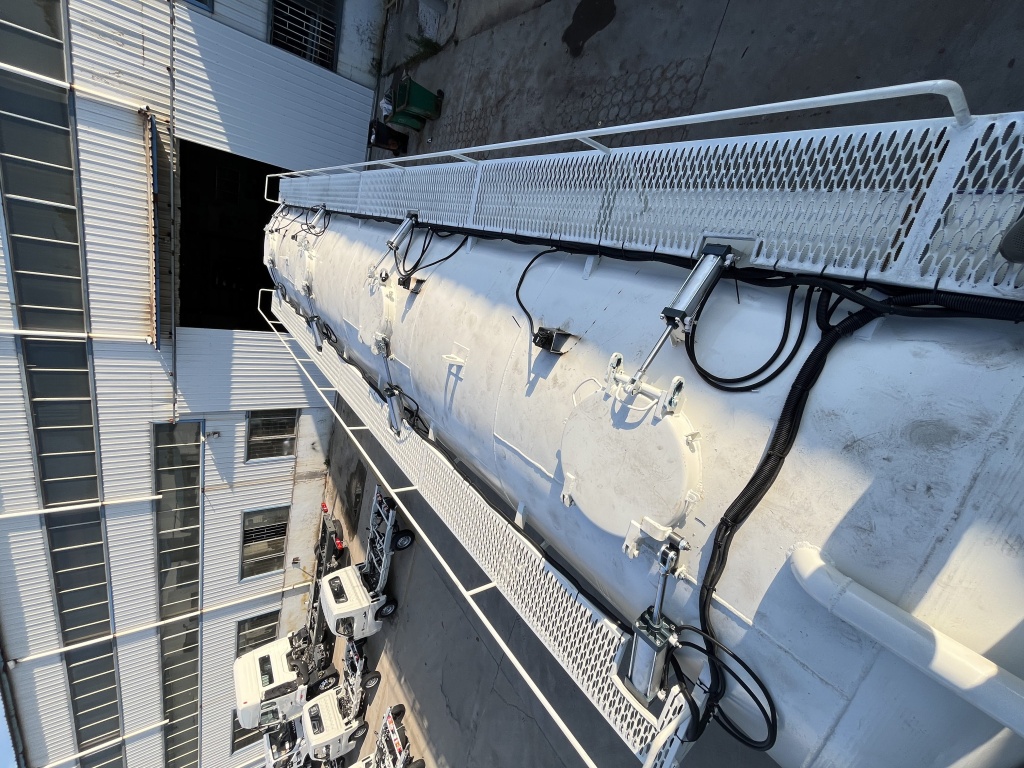

The tank holds 31.95 m³ in a 4-compartment layout (customizable) and discharges at 750–800 kg/min, with a residual rate below 0.01%. The tank's main beam is supported by high-strength steel and welded with gas-shielded welding (MIG). Standard fit includes an imported Siemens 45kW motor, an Ingersoll Rand air compressor and ChnTec electrical controls with interlocked protection against phase loss, undervoltage and incorrect phase sequence, plus remote control. External-power unloading keeps energy costs low, is cleaner, and puts less wear on the vehicle.

Factory & Process Credentials

Binglingfang (Qingdao Yakai Automotive Industry And Trade Co., Ltd.) was founded in 1991 and brings 36 years of special-purpose vehicle manufacturing experience; its bulk feed transport trucks entered the market in 2019. The company holds special vehicle production qualifications (certified by the NDRC/MIIT), is ISO9001 and CCC certified, and is recognized as a national high-tech enterprise and a specialized, refined, distinctive and innovative (SRDI) enterprise. Its products sell across China and are exported to more than 50 countries and regions.
